• Electric shift-on-the-fly transfer case -inc: manual-locking front hubs, instrument panel auto rotary control
• 4-wheel drive
• 72 amp/hr (650 CCA) battery
• 157-amp HD alternator
• Trailer tow pkg -inc: 7-wire harness w/relays, 7/4 pin combination connector
• 12.5K trailer hitch receiver -inc: 2" hitch
• Trailer brake controller *Compatible w/select electric over hydraulic brakes*

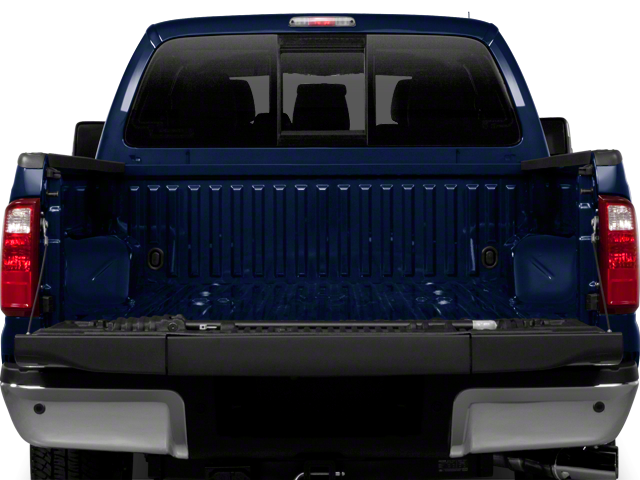

• 6-3/4' pickup box -inc: (4) tie-down hooks, partitionable & stackable storage
• (2) front tow hooks
• Mono-beam front axle w/coil spring suspension
• HD gas shock absorbers
• Front stabilizer bar
• Pwr steering w/steering damper
• Pwr 4-wheel disc brakes w/vacuum boost
• 2-ton mechanical jack

• (5) LT275/65R18E all-season BSW tires
• 18" 6-spoke bright machined cast aluminum wheels -inc: bright center ornaments
• Full-size spare tire w/lock & carrier
• Chrome front bumper w/grained top cover
• Chrome rear bumper
• Front fender vents
• Box-rail & tailgate top-edge moldings
• Grille w/medium platinum insert & chrome surround
• Autolamp/rainlamp dual beam halogen headlamps
• Fog lamps
• Pickup box/cargo lights
• Underhood service light
• PowerScope pwr telescoping & folding heated trailer tow mirrors -inc: turn signals, integrated clearance lights, heated convex spotter mirror
• Solar tinted glass
• Rear privacy glass
• Pwr sliding rear window
• Interval windshield wipers
• Front/rear license plate brackets
• Body-color door handles
• Removable locking tailgate w/black handle & TailGate Assist

• Premium AM/FM stereo w/CD/MP3 player -inc: clock, (8) speakers, subwoofer, aux audio input jack
• SIRIUS satellite radio

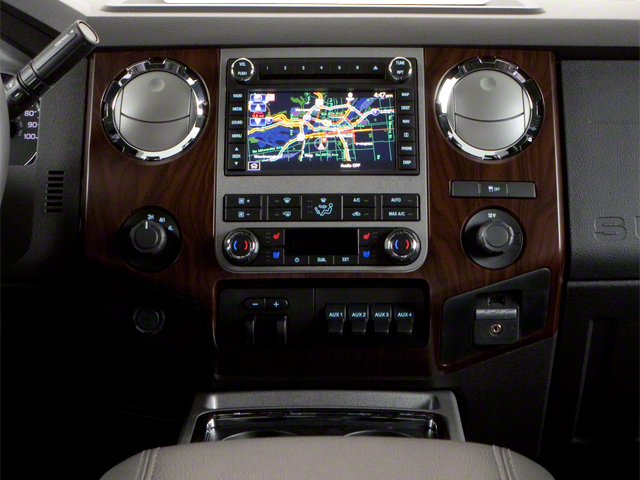

• SYNC voice activated communications & entertainment system -inc: Bluetooth® capability, steering wheel audio controls, USB port, audio input jack, 911 Assist, vehicle health reports, turn-by-turn navigation, real-time traffic

• Dual zone electronic automatic temperature control (DEATC)

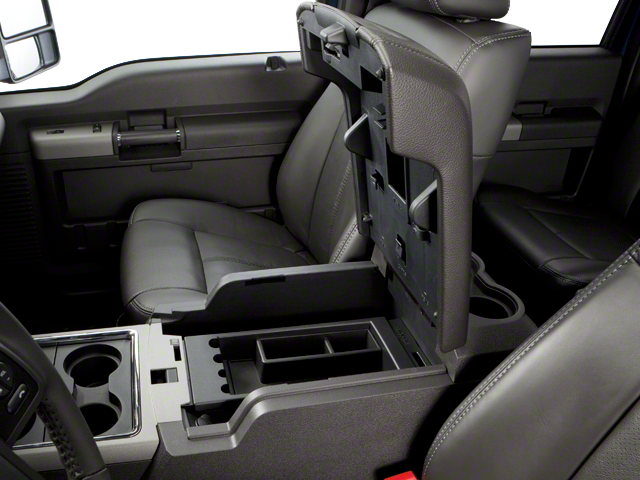

• Premium leather 40/console/40 front seats -inc: monotone leather insert, (2) aux pwr outlets in console
• 10-way pwr driver & front passenger seats

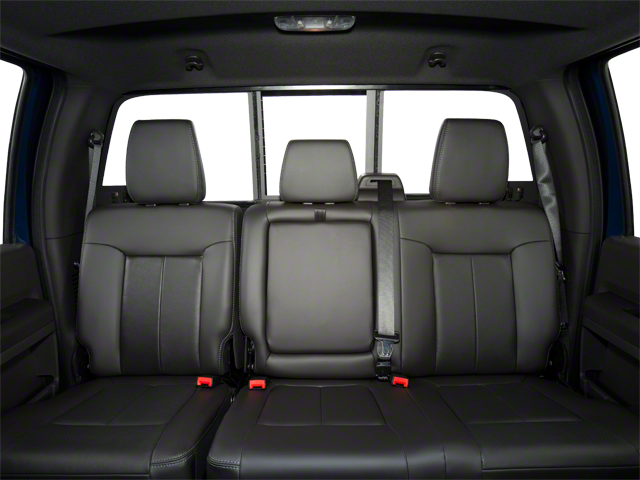

• 60/40 flip-up/fold-down rear split bench seat -inc: dual cupholders in armrest, underseat partitioned lockable storage w/aux pwr outlet, (3) head restraints
• Rear armrests w/cupholders
• Color-keyed carpet full-floor covering
• Front/rear color-keyed carpeted floor mats
• Color-keyed scuff plates
• Tilt/telescoping steering column

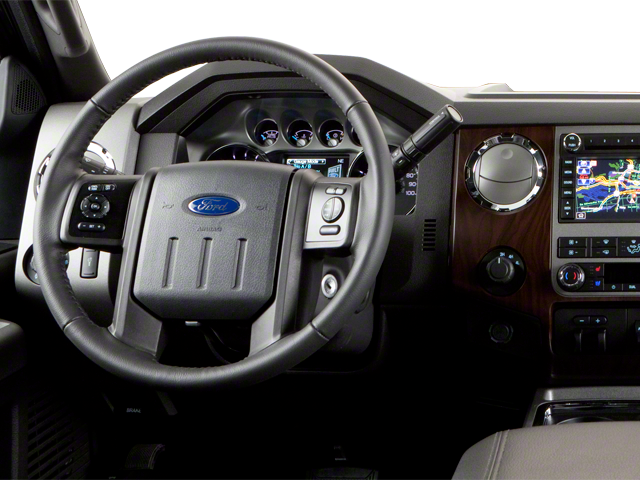

• Color-keyed leather-wrapped steering wheel w/audio & SYNC controls
• LCD productivity screen -inc: driver configurable enhanced information 4.2" display, menus for gauge setup, trip computer, fuel economy, towing/off-road applications, (5) button message control on steering wheel
• Oil minder system
• Pwr windows w/driver one-touch-down & backlit switches
• Accessory delay
• Pwr door locks w/backlit switches, autolock & auto unlock, SecuriCode keyless entry keypad
• Pwr adjustable pedals
• Remote keyless entry & perimeter anti-theft alarm
• SecuriLock anti-theft ignition
• Cruise control
• 3-blink lane change signal
• (4) air registers w/positive shut-off
• (2) aux pwr outlets in instrument panel
• 110V/150W inverter aux pwr outlet in rear console
• Dash-top tray

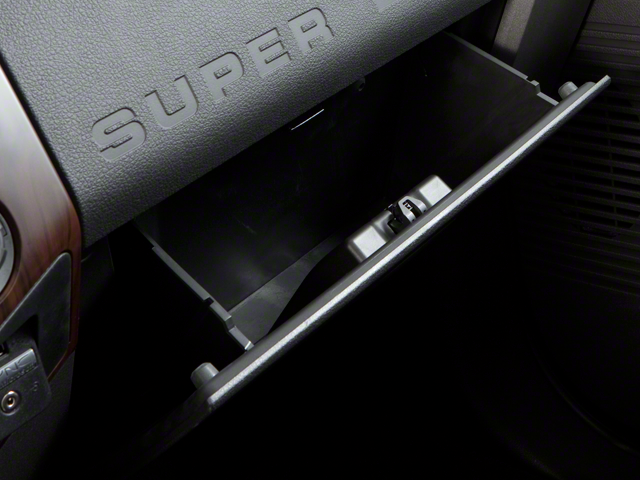

• Glove box

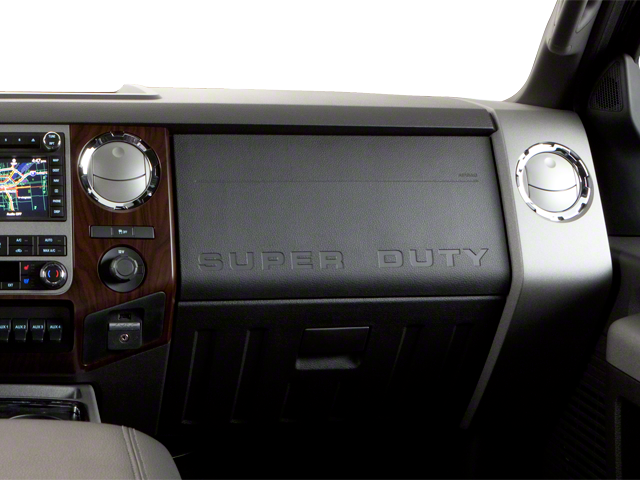

• Secondary glove box
• Instrument panel mounted storage bin & trash bag hook
• Instrument panel mounted dual cupholders
• Color-keyed door trim panel -inc: soft armrest, grab handle, reflector, dark foundry upper applique, upper & lower map pockets
• Electrochromic rearview mirror w/compass
• Overhead console -inc: storage bins for garage door opener & sunglasses
• Color-keyed cloth headliner -inc: integrated SYNC microphone
• Front passenger-side roof ride handle
• Rear seating roof ride handles
• Driver & front passenger grab handles
• Dual color-keyed vinyl sunvisors-inc: driver-side map strap, dual covered lighted mirrors
• Front door operated dome lamp w/time delay off & IP switch
• Front/rear map lamps
• Dual color-keyed coat hooks

• 4-wheel anti-lock braking system (ABS)
• AdvanceTrac w/roll stability control (RSC)
• Hill start assist control
• Trailer sway control
• Driver & front passenger airbags
• Driver & front passenger side air bag/curtain
• Reverse vehicle aid sensor
• SOS post crash alert system
• Color-keyed safety belts w/front seat outboard height adjustable D-rings
• BeltMinder seatbelt-not-buckled chime & flashing warning light
• Rear door child safety locks
• Child seat tethers on all rear passenger seats
• Tire pressure monitoring system

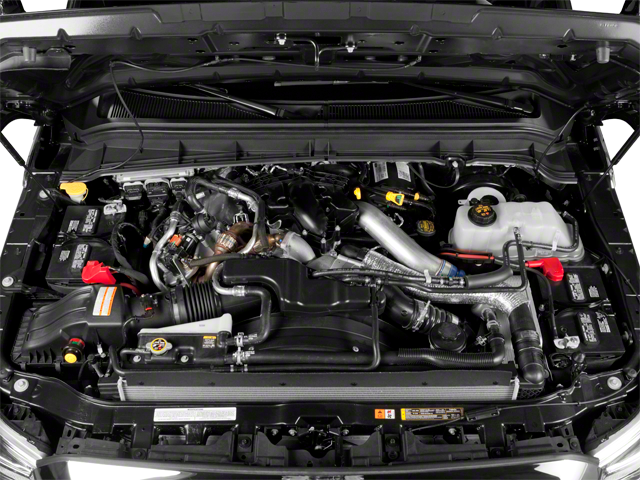

6.7L 32-VALVE POWER STROKE V8 DIESEL ENGINE

• diesel emission fluid system
• engine exhaust braking in tow/haul mode
• 750 CCA 78-AH dual batteries
• intelligent oil life minder
• 14K trailer hitch receiver w/2.5" trailer hitch & 2" reducer sleeve

• Airbags - Front - Side
• Airbags - Front - Side Curtain
• Airbags - Rear - Side Curtain
• Towing And Hauling Trailer Wiring: 7-Pin
• ABS Brakes (4-Wheel)
• Drivetrain 4WD Type: Part Time
• Exterior Mirrors Towing Mirrors
• Towing And Hauling Trailer Hitch
• Rear Seats 60-40 Split Bench
• Traction Control With Trailer Stability Assist
• Towing And Hauling Tow Hooks: Front
• Braking assist hill start assist
• Airbags - Front - Dual
• Rear Seats Split Folding
• Security Engine Immobilizer
• Rear Seats Center Armrest: Folding With Storage
• Steering Wheel Tilt And Telescopic
• Child Seat Anchors LATCH System
• Front Suspension Type: Multi-Link
• Multi-Function Display
• Electronic Brakeforce Distribution
• Power Steering
• Windows Front Wipers: Intermittent
• Fuel Economy Display MPG
• Fuel Economy Display Range
• Stability Control
• Traction Control
• Cargo Bed Light
• Front Suspension Classification: Solid Live Axle
• Reading Lights Front
• Reading Lights Rear
• Seatbelts Seatbelt Pretensioners: Front
• Tachometer
• Suspension Stabilizer Bar(s): Front
• Impact Sensor Post-Collision Safety System
• Roll Stability Control
• Adjustable Rear Headrests
• Audio - Antenna: Mast
• Child Safety Locks
• Front Headrests Integrated
• Number Of Front Headrests 2
• Number Of Rear Headrests 3
• Seatbelts Rear Center Seatbelt: 3-Point
• Tailgate Removable
• Trip Odometer
• Warnings And Reminders Low Fuel Level
• Warnings And Reminders Low Oil Level

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (Primary): 650
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 157
• Maximum Alternator Watts: 2100
• Cooling System
• Total Cooling System Capacity (qts): 38.9
• Total Cooling System Capacity (qts): 21.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 6100
• Curb Weight - Front (lbs): 4524
• Curb Weight - Front (lbs): 3951
• Curb Weight - Rear (lbs): 2932
• Curb Weight - Rear (lbs): 2882
• Gross Vehicle Weight Rating Cap (lbs): 10000
• Gross Combined Wt Rating (lbs): 23500
• Gross Combined Wt Rating (lbs): 19000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 14000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 2100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1800
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 15700
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 12000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3925
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3000
• Suspension
• Suspension Type - Front: Coil
• Suspension Type - Rear: 2-Stage Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6100
• Axle Type - Front: Dana Super 60 Monobeam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.7 x 0.5
• Rear Brake Rotor Diam x Thickness (in): 13.4 x 0.3
• Tires
• Front Tire Order Code: TCH
• Rear Tire Order Code: TCH
• Spare Tire Order Code: TCH
• Front Tire Size: LT275/65R18E
• Rear Tire Size: LT275/65R18E
• Spare Tire Size: LT275/65R18E
• Front Tire Capacity (lbs): 3415
• Rear Tire Capacity (lbs): 3415
• Spare Tire Capacity (lbs): 3415
• Revolutions/Mile @ 45 mph - Front: 652
• Revolutions/Mile @ 45 mph - Rear: 652
• Revolutions/Mile @ 45 mph - Spare: 652
• Wheels
• Front Wheel Size (in): 18 x 8.0
• Rear Wheel Size (in): 18 x 8.0
• Spare Wheel Size (in): 18 x 8.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: - TBD -
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: 20.4
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.8
• Turning Diameter - Wall to Wall (ft): 53.7
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Capacity, Approx (gal): 35
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 156.2
• Length, Overall w/o rear bumper (in): 246.8
• Width, Max w/o mirrors (in): 79.9
• Height, Overall (in): 79.7
• Overhang, Front (in): 38.1
• Overhang, Rear w/o bumper (in): 52.4
• Front Bumper to Back of Cab (in): 154.2
• Cab to Axle (in): 39.9
• Cab to End of Frame (in): 80.4
• Ground to Top of Load Floor (in): 35.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): 37.6
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.1
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 81.8
• Cargo Box Width @ Top, Rear (in): 63.5
• Cargo Box Width @ Floor (in): 69.3
• Cargo Box Width @ Wheelhousings (in): 50.9
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): 60.6
• Cargo Volume (ft³): 64.1
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 40.7
• Front Leg Room (in): 41.1
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.6
• Second Head Room (in): 40.8
• Second Leg Room (in): 42.1
• Second Shoulder Room (in): 68.0
• Second Hip Room (in): 67.6
• Summary

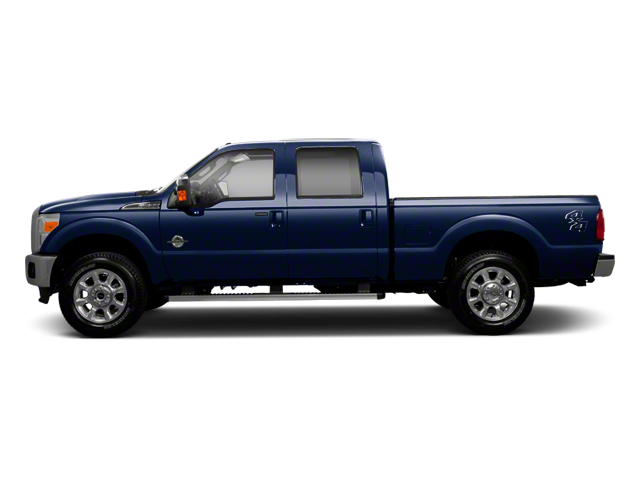

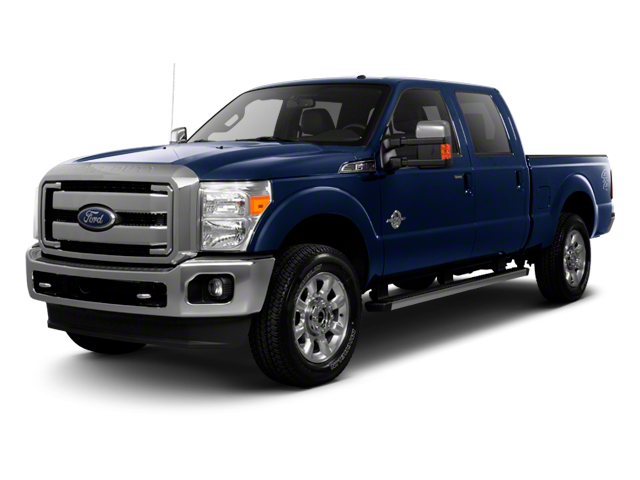

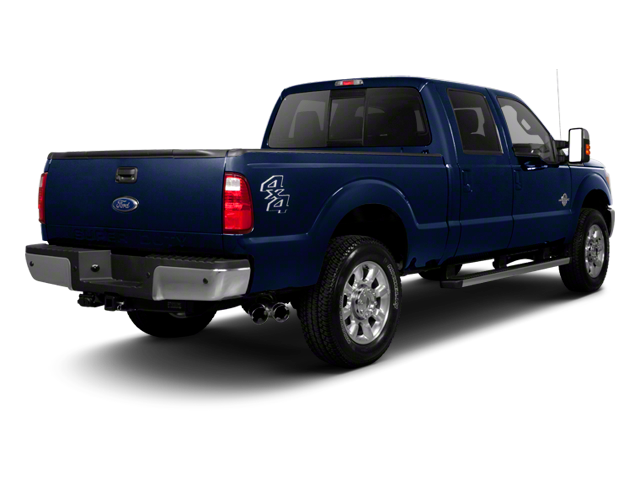

• Vehicle Name: Ford Super Duty F-250 SRW
• Body Style: Crew Cab 6-3/4'
• Body Code: 156" WB
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
